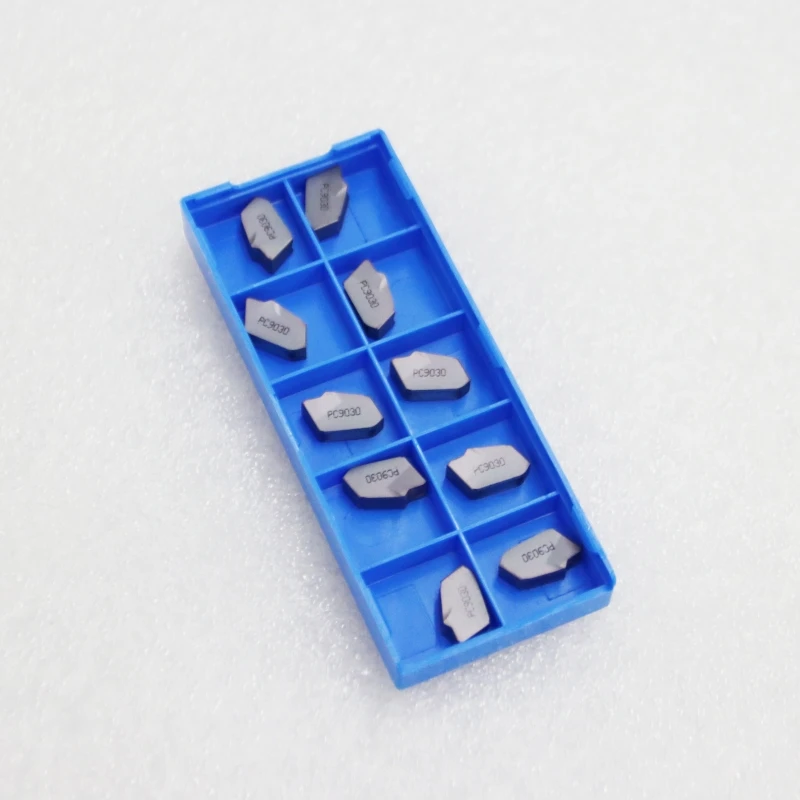

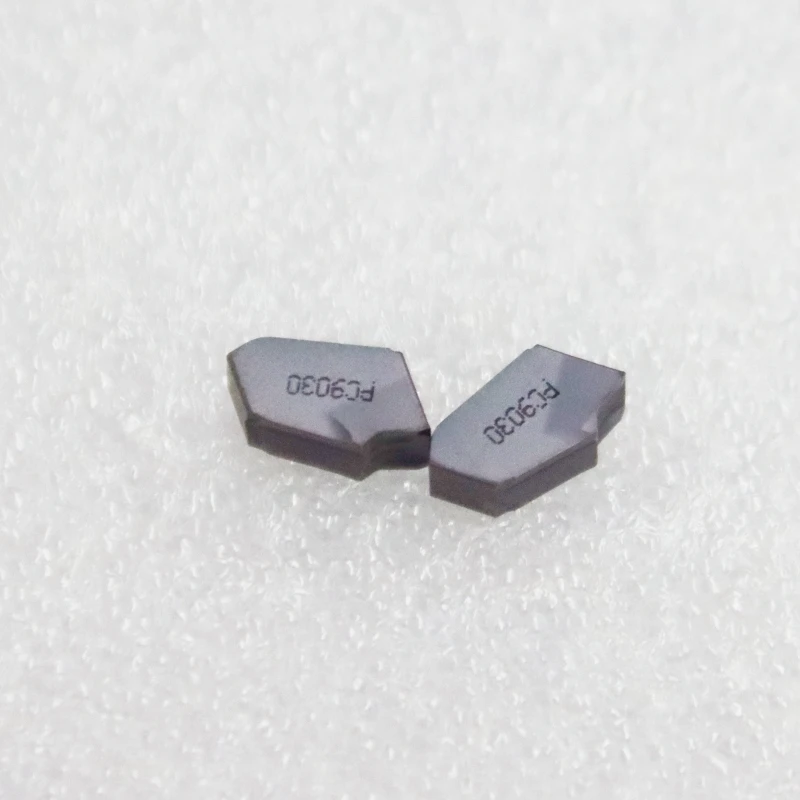

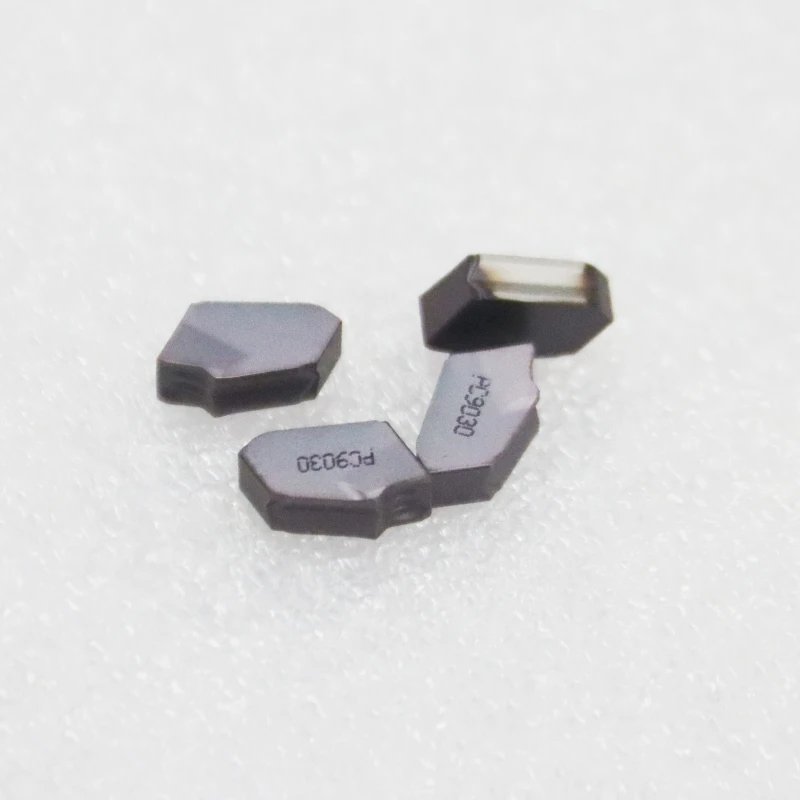

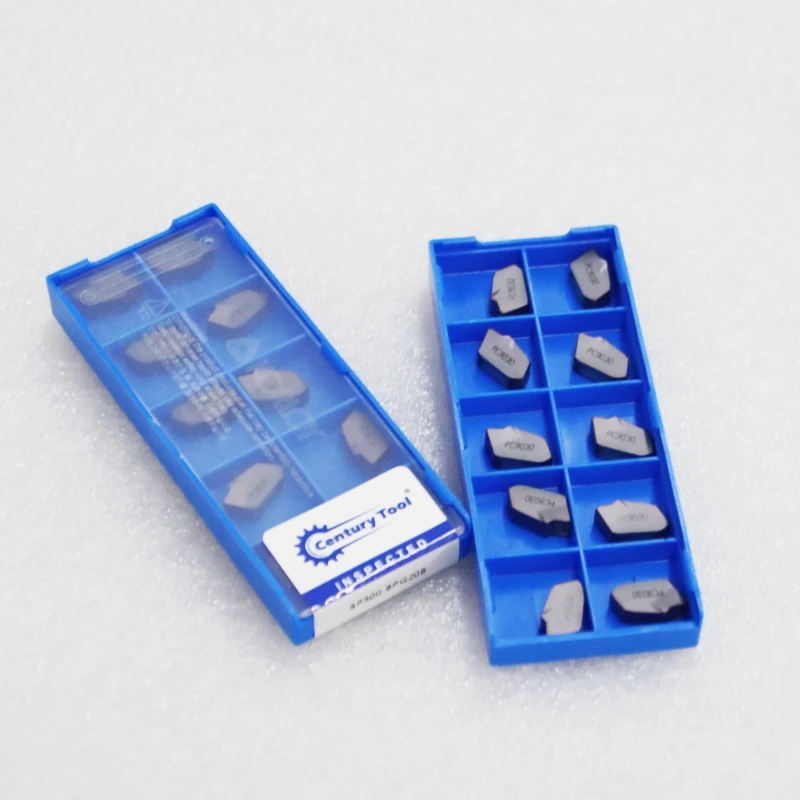

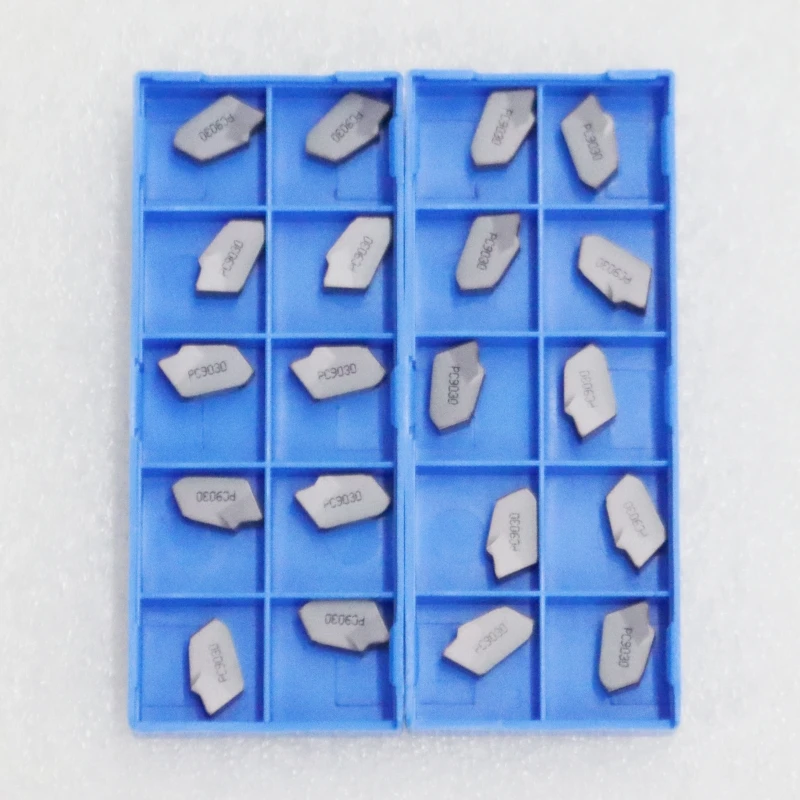

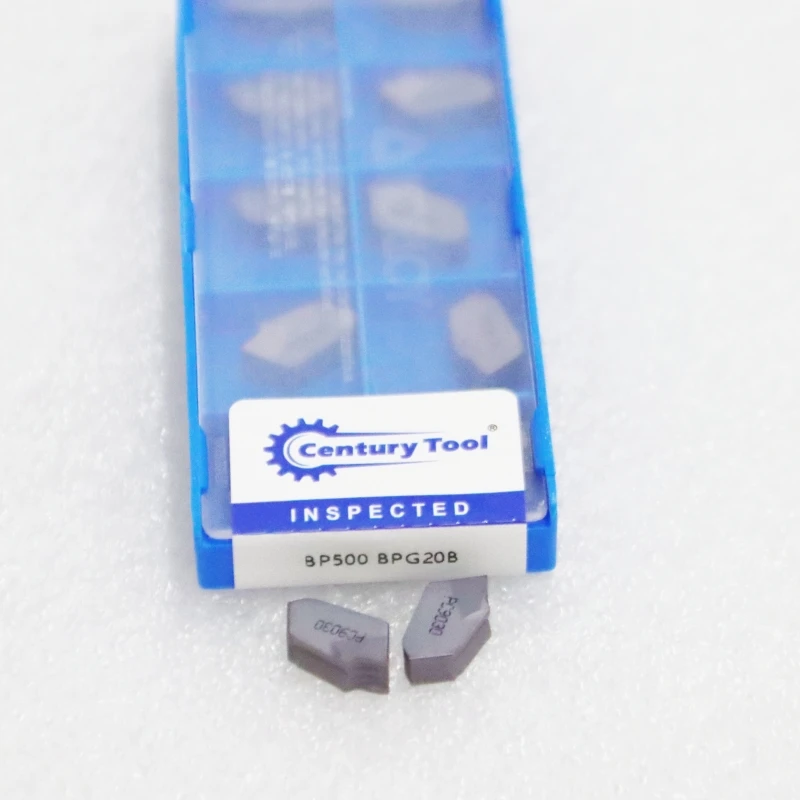

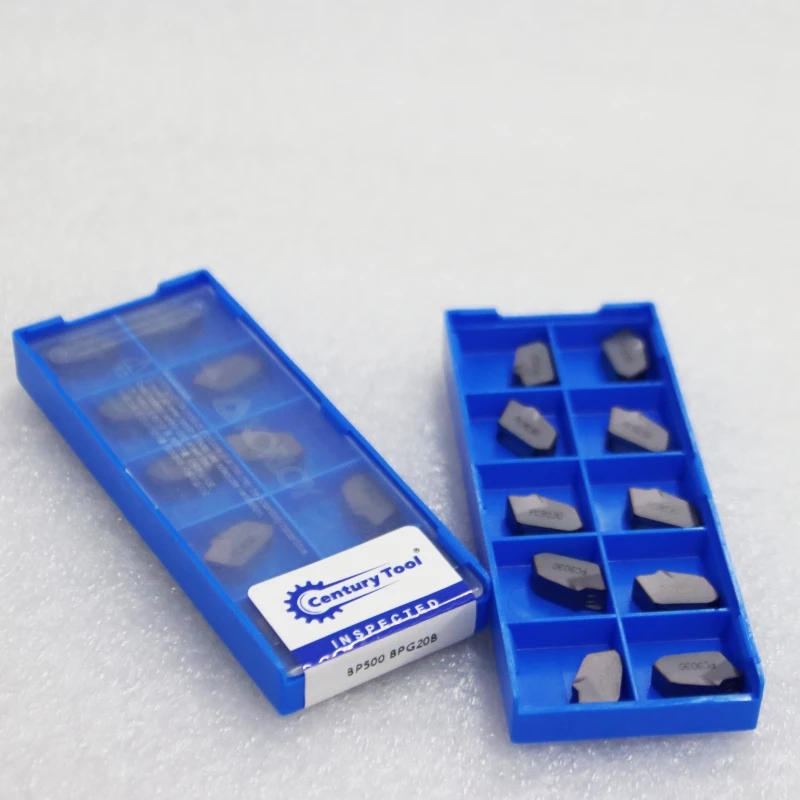

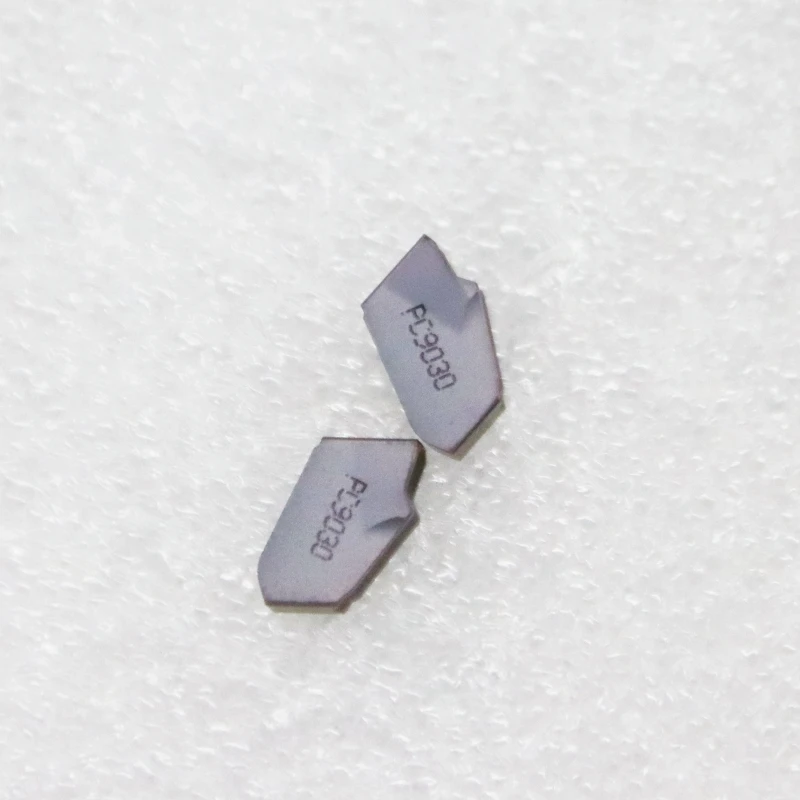

10pcs Grooving Inserts Sp200 Sp300 Sp400 Sp500 Grooving Carbide Inserts Sp 300 Lathe Tools Turning Insert
USD 3,48 – 3,88
/ Piece
El precio varía según cantidad y especificaciones
| Cant. mín. | 10 Piece |
| Categoría | Tools & Hardware |
6
Años
98%
Tasa de respuesta
24h
Tiempo de respuesta
Descripción del producto
Products Description
carbide indexable cnc insert
Ccmt060202 Ccmt060204 Ccmt09T302 Ccmt09T304 Ccmt09T308 Ccmt120412 Ccmt120408 Ccmt 120404 060208 09T302 09T304 Carbide Insert
1. 100% original carbide powder and excellent wear resistance and toughness;
2. High performance of CVD/PVD coating, with super hard and smooth surface;
3. ISO9001:2015 quality system control;
4. Professional chip-breaker design and provides perfect cutting performance;
5. Precise dimension, high accuracy;
6.Super long and consistent tool lifespan;
7. Customized insert design, coating, marking, packing are available.
knurling tool manufacturers ms turning scrap tungsten carbide insert for ceramic material diamond chip inserts
| item | 10PCS Grooving Inserts SP200 SP300 SP400 SP500 Grooving Carbide Inserts SP 300 Lathe Tools Turning Insert |
| warranty | 3 years |
| customized support | OEM |
| Place of Origin | china |
| Brand Name | ZZCT |
| Model Number | SP500 |
| Usage | External Turning Tool |
| Hardness | HRC40-60 |
| coating | Ccmt060202 Ccmt060204 Ccmt09T302 Ccmt09T304 Ccmt09T308 Ccmt120412 Ccmt120408 Ccmt 120404 060208 09T302 09T304 Carbide Insert |
| Application | CNC INSERT |
| Product name | 4 cutting edges seen1203 planer type cermet insert Seen1203 Square Cutting Turning Tool Milling Insert Cutting Tools |
| workpiece | steel\ Stainless\ Cast lron |
| color | Gray Golden Yellow Black |
| MOQ | 30piece |
| TRANSPORT | TNT\DHL\ Fedex\EMS UPS |
| Delivery time | 3-7days |
| Advantage | High Wear Resistance |
| Grade | so Grades |
| OEM & ODM | welcomed |
| COATING | COLOR | HARDNESS | APPLICATION |
| CVD (MT-TiCN+Al203+TiN) | Yellow | 1530 | High cubic content gradient carbide substrate,gives good anti-deformation resistance and excellent high temperature performance. MT-TiCN+Al2O3+TiN coating has very good surface quality and easy to recognize wear. It is suitable for semi-finishing to finishing steel machining. |
| CVD (MT-TiCN+Al203+TiN) | Yellow | 1480 | Relatively high cubic gradient carbide substrate,with good anti-deformation resistance ang toughness.MT-TiCN+Al2O3+TiN coating has very good surface quality and easy to recognize wear. It is suitable for semi-finishing to roughing steel machining. |
| CVD(Thick TiCN+Al203) | Black | 1530 | Low cobalt content,and high cubic content carbide substrate combine with thick TiCN and Al2O3,treated by special after coating treatment,which gives insert wonderful wearing resistance.Preferred grade for semi-finishing to finishing steel machining. |
| CVD(Thick TiCN+Al203) | Black | 1480 | Medium cobalt content,and high cubic content carbide substrate combine with thick TiCN and Al2O3,treated by special after coating treatment,which gives insert wonderful wearing resistance.Preferred grade for semi-finishing to roughing steel machining. |
| CVD(Thick TiCN+Al203) | Black | 1700 | Hard substrate perfectiy combined with ultra thick TiCN and Al2O3, treated by special after coating treatment,which gives insert wonderful wearing resistance.It is suitable for semi-finishing to finishing cast iron machining. |
| CVD(Thick TiCN+Al203) | Black | 1580 | The medium-coarse substrate combine with thick TiCN and textured Al2O3, treated by special after coating treatment,which gives insert outstanding wearing resistance.It is suitable for semi-finishing cast iron machining with high speed. |
| CVD (MT-TiCN+Al203) | Yellow | 1330 | High Co content substrate combines with thin MT-TiCN and thin Al2O3 coating,it is optimized for impact resistance and wearing resistance,also easy to recognize wear.It is suitable for general steel milling machining. |
| CVD (MT-TiCN+Al203) | Yellow | 1300 | Mid-coarse grain substrate combine with thin MT-TiCN and thin Al2O3 ,gives excellent roughness.It is suitable for steel heavy milling under bad work condition. |
| CVD (MT-TiCN+Al203) | Black | 1300 | Strong medium coarse grain size substrate coated by ultra fine MT-TiCN and thin Al2O3 coating,after special treatment,it has good impact strength and abrasion resistance.It is suitable for general stainless steel turning. |
| CVD (MT-TiCN+Al203) | Glod | 1480 | Medium Cobalt content,and high cubic carbide substrate combine with thin TiCN and Al2O3 ,treated by special after coating treatment,which gives insert wonderful wearing resistance.Preferred grade for stainless steel turning at high speed. |
| PVD (AlTiN) | Gray | 1650 | High Co content and ultra fine WC grain substrate,gives wonderful cutting edge strength,combines with PVD AlTiN coating,it has oustanding wearing resistance.It is suitable for steel and cast iron slight milling. |
| PVD (Silicon+AITiN) | Dark Purple | 1650 | High Co content and ultra fine WC grain substrate,gives wonderful cutting edge strength,combines with good thermal stability silicon coating,it has very small coefficient of friction,and good nano hardness. It is suitable for steel and stainless steel continue turning and threading. |
| PVD (Silicon+AITiN) | Dark Purple | 1560 | High Co content and fine WC grain substrate,gives wonderful cutting edge strength,combines with good thermal stability silicon coating,it has very small coefficient of friction,and good nano hardness. Good at stianless steel semi-finishing turning,parting and gooving processing,preferred grade for steel and stainless steel milling and drilling. |
| PVD (New AITiN) | Gray | 1560 | High Co content and fine WC grain substrate,gives wonderful cutting edge strength,combines with new AlTiN coating,it has very small coefficient of friction,high antioxidant temperature,and good nano hardness. Preferred grade for steel and stainless steel milling and drilling. |

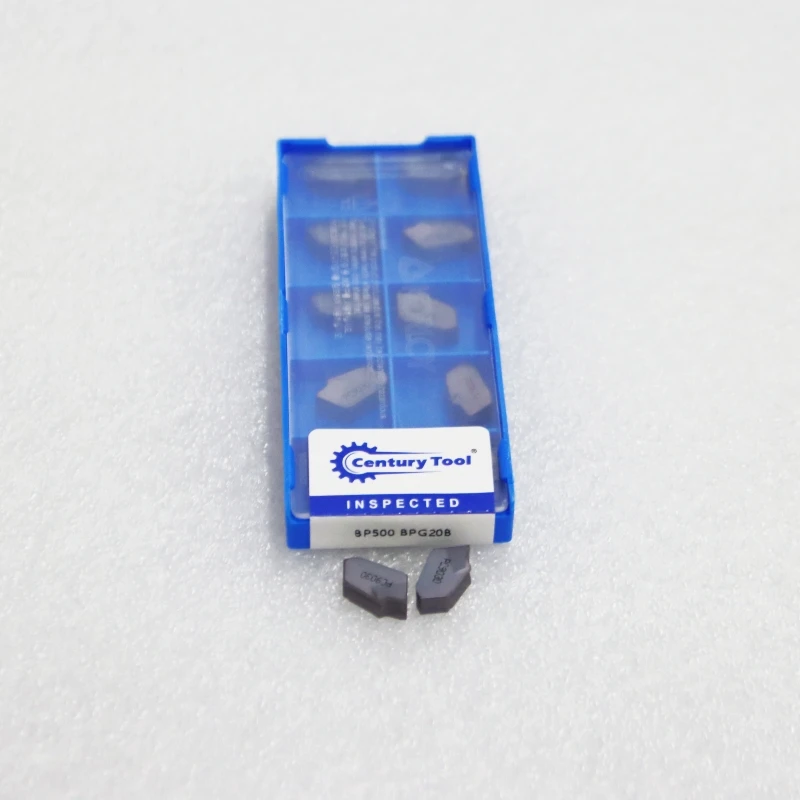

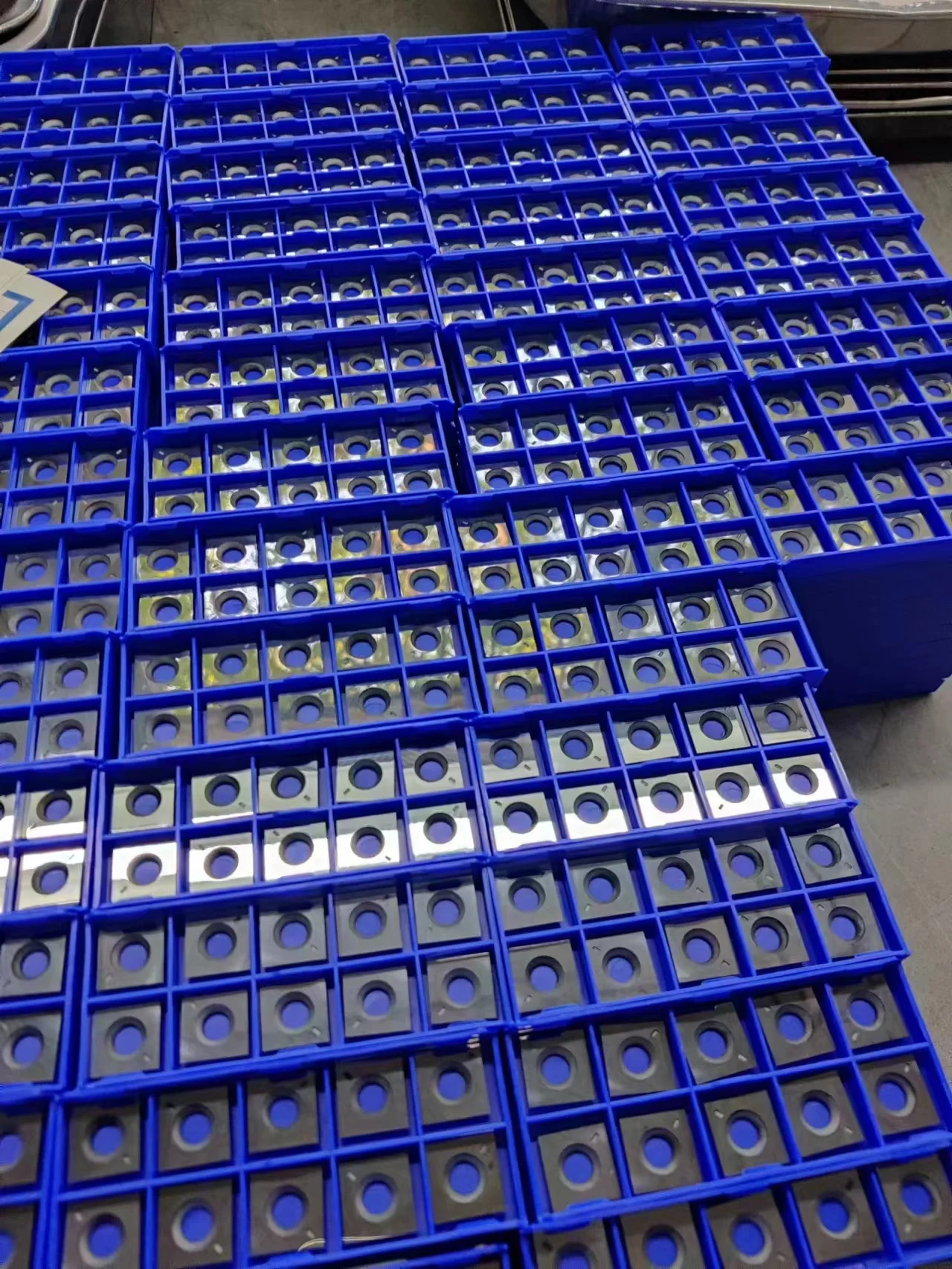

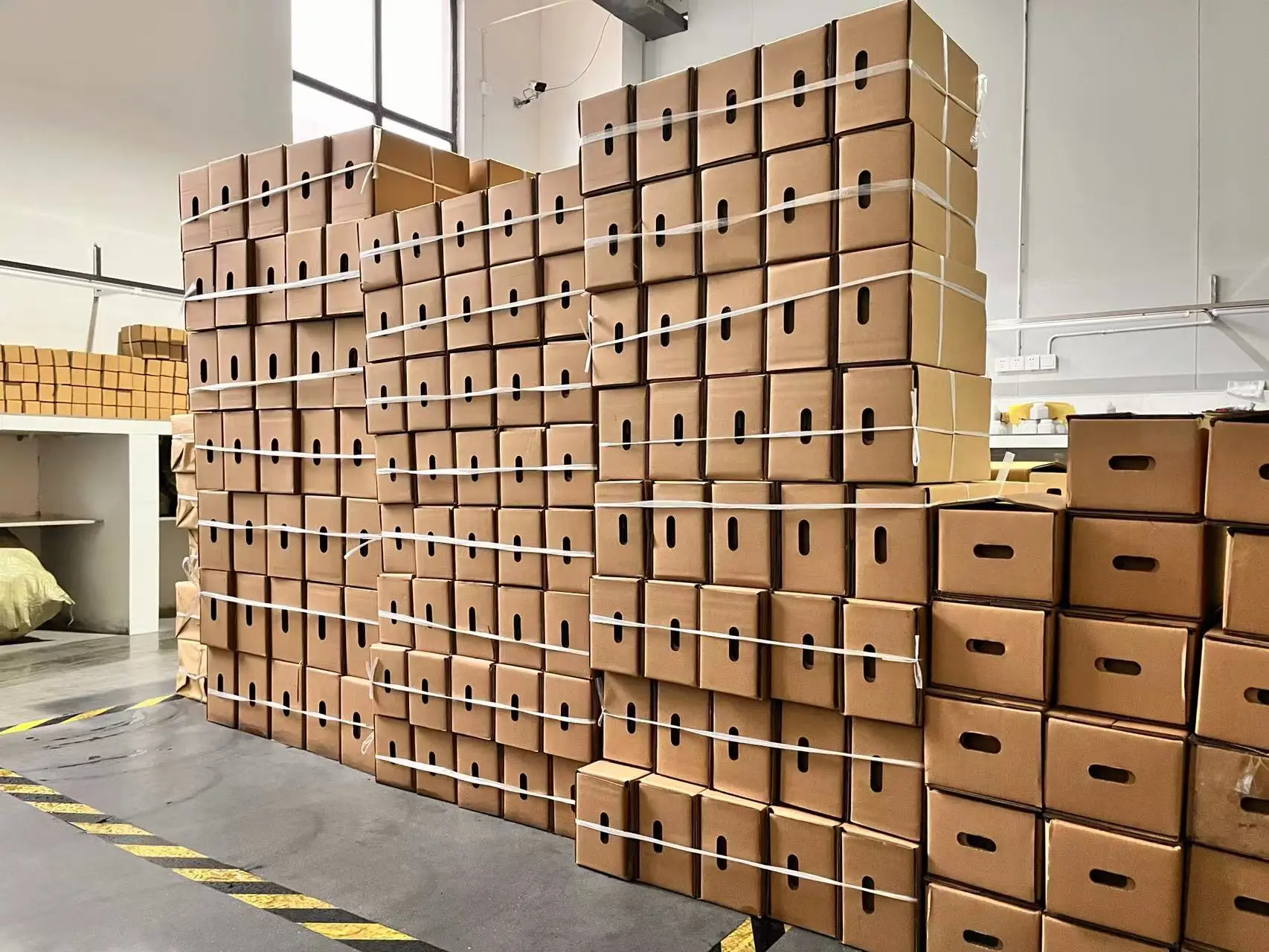

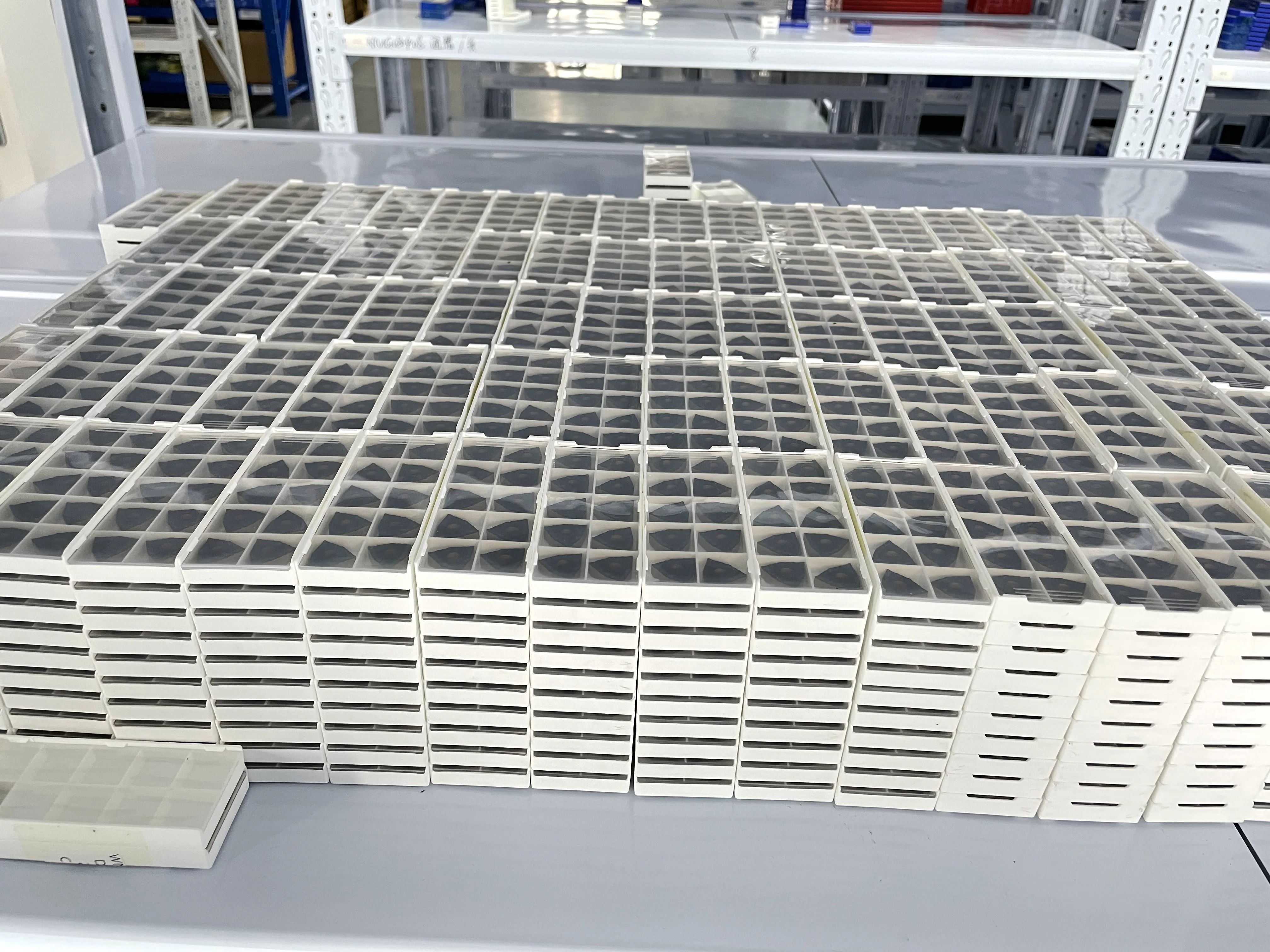

Product packaging
Especificaciones técnicas
| Brand Name | ZZCT |
| Model Number | SP500 |
| Usage | External Turning Tool |
| Hardness | HRC40-60 |
| Coating | PVD/CVD |
| Place of Origin | Hunan, China |
| Warranty | 3 years |
| Customized support | OEM |
| Workpiece | Steel, Stainless Steel, Cast Iron |
| Color | Gray, Golden Yellow, Black |
| Delivery time | 3-7 days |
| Transport | TNT, DHL, Fedex, EMS, UPS |
