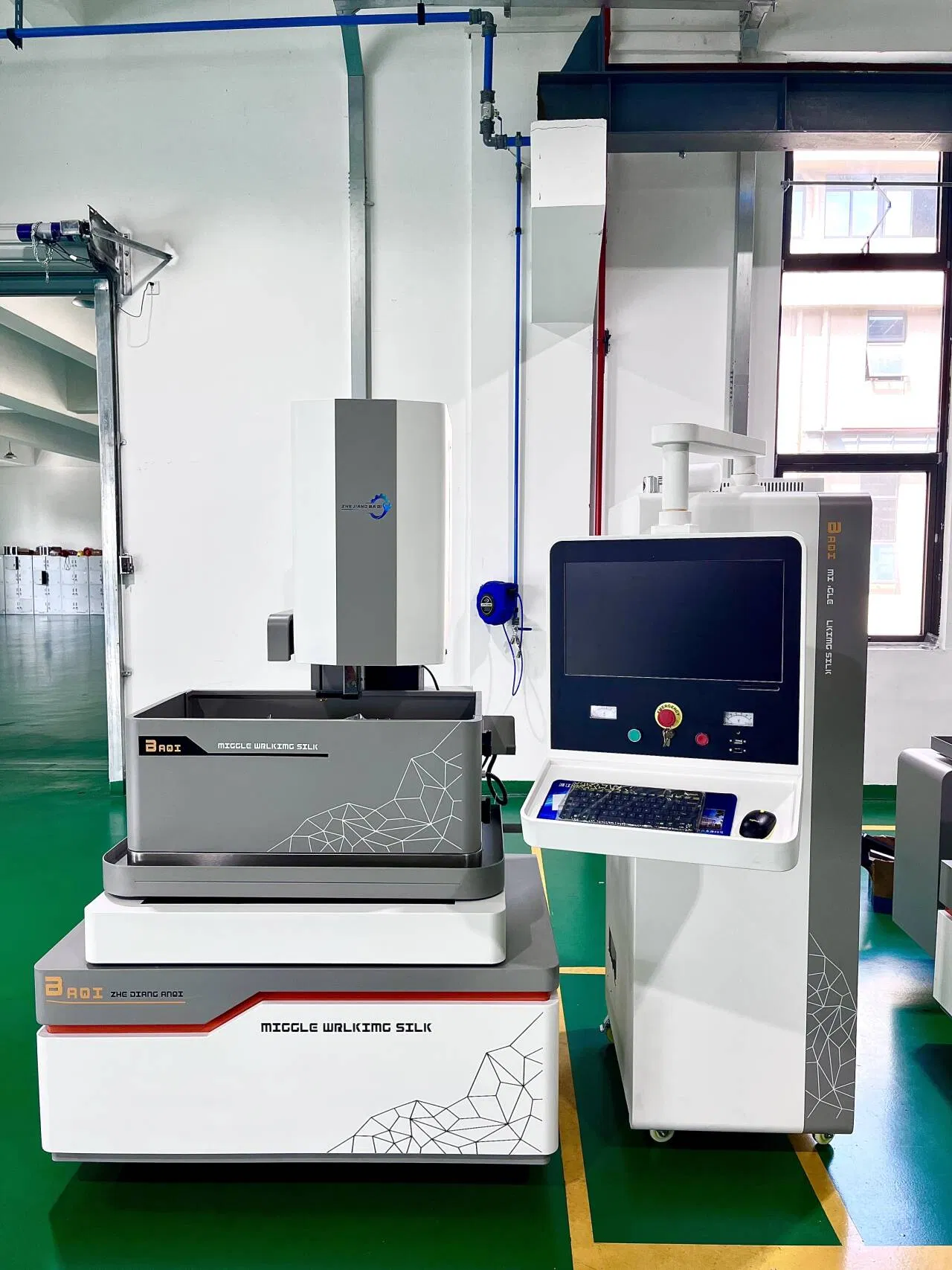

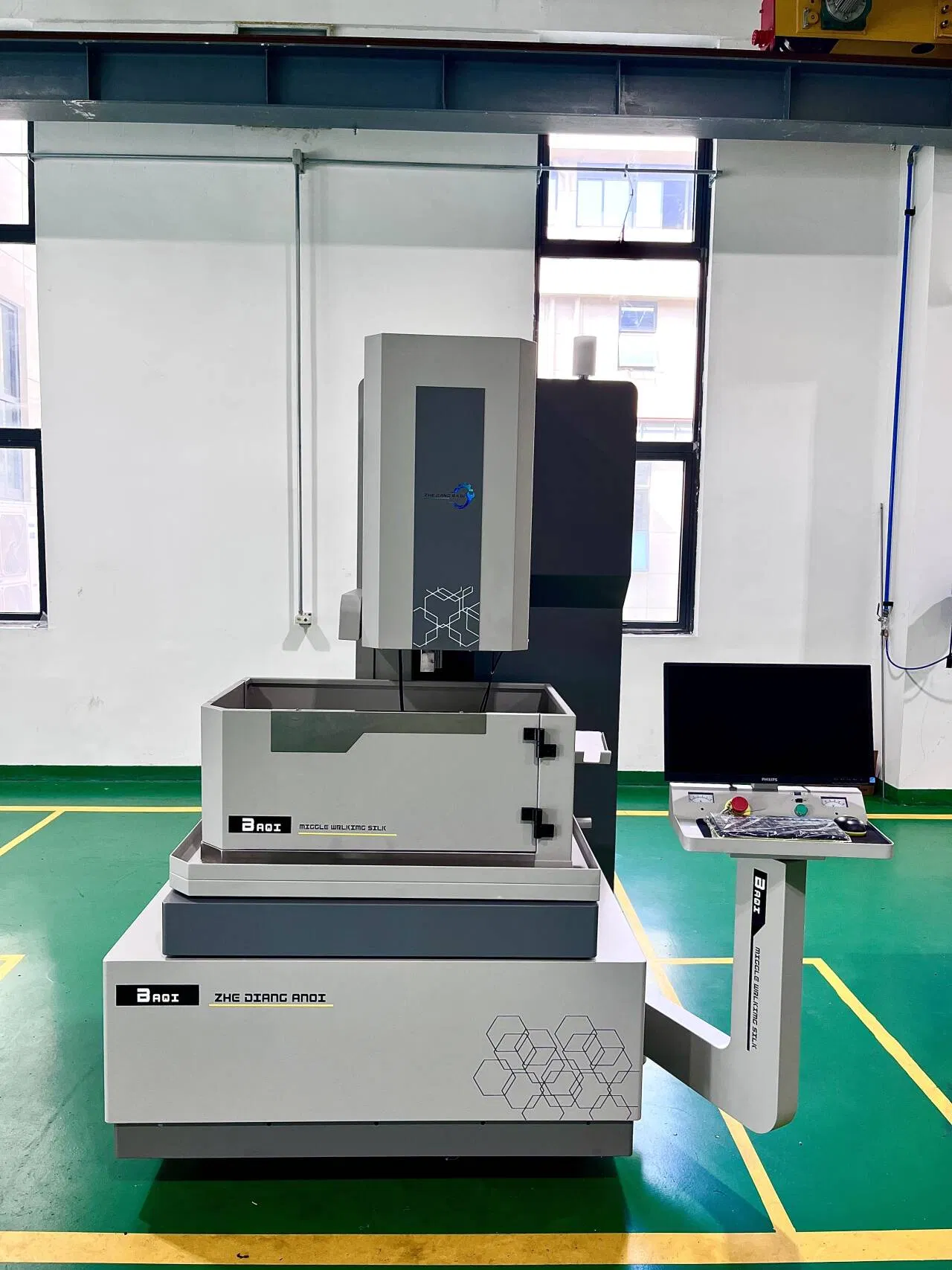

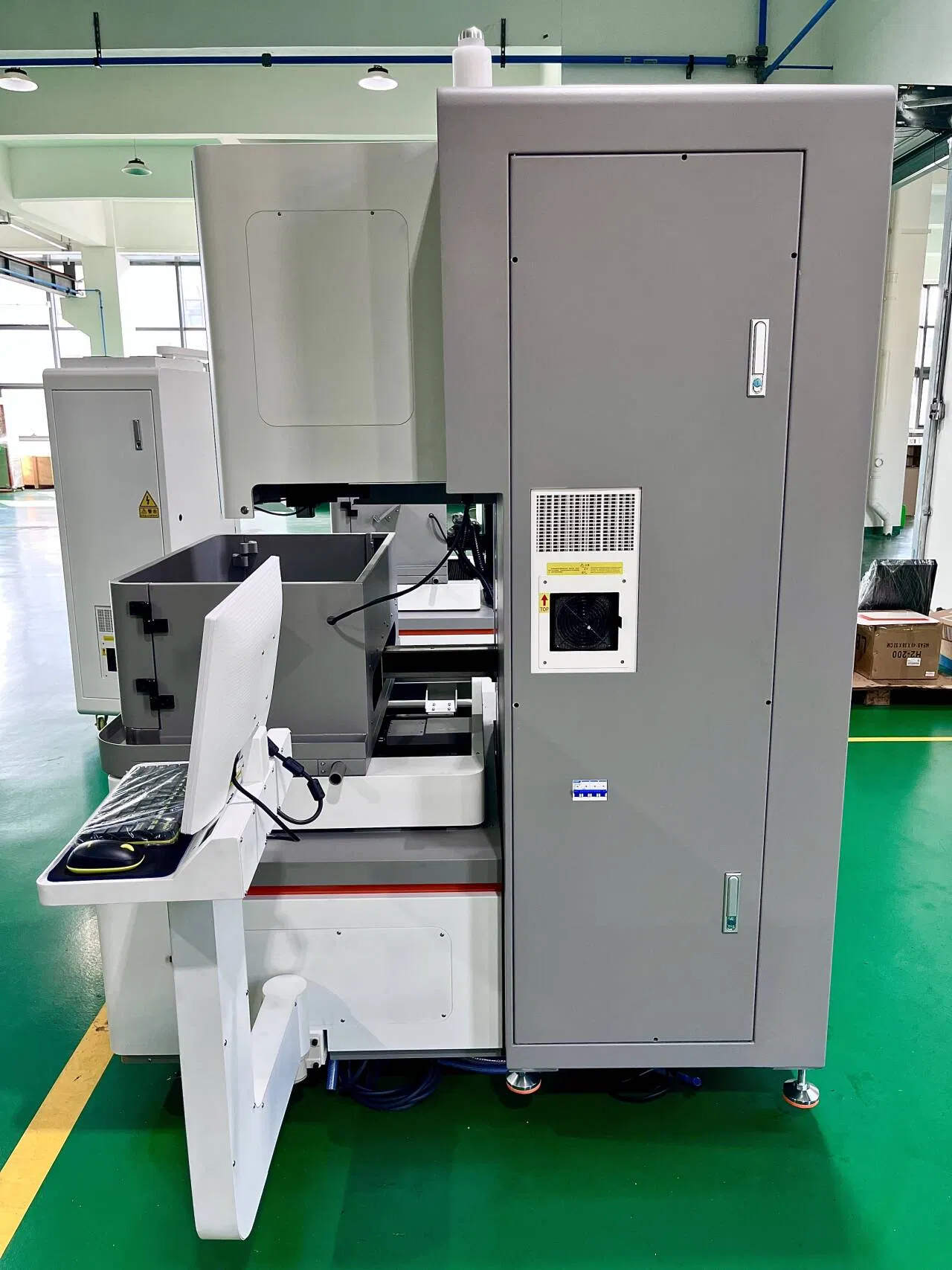

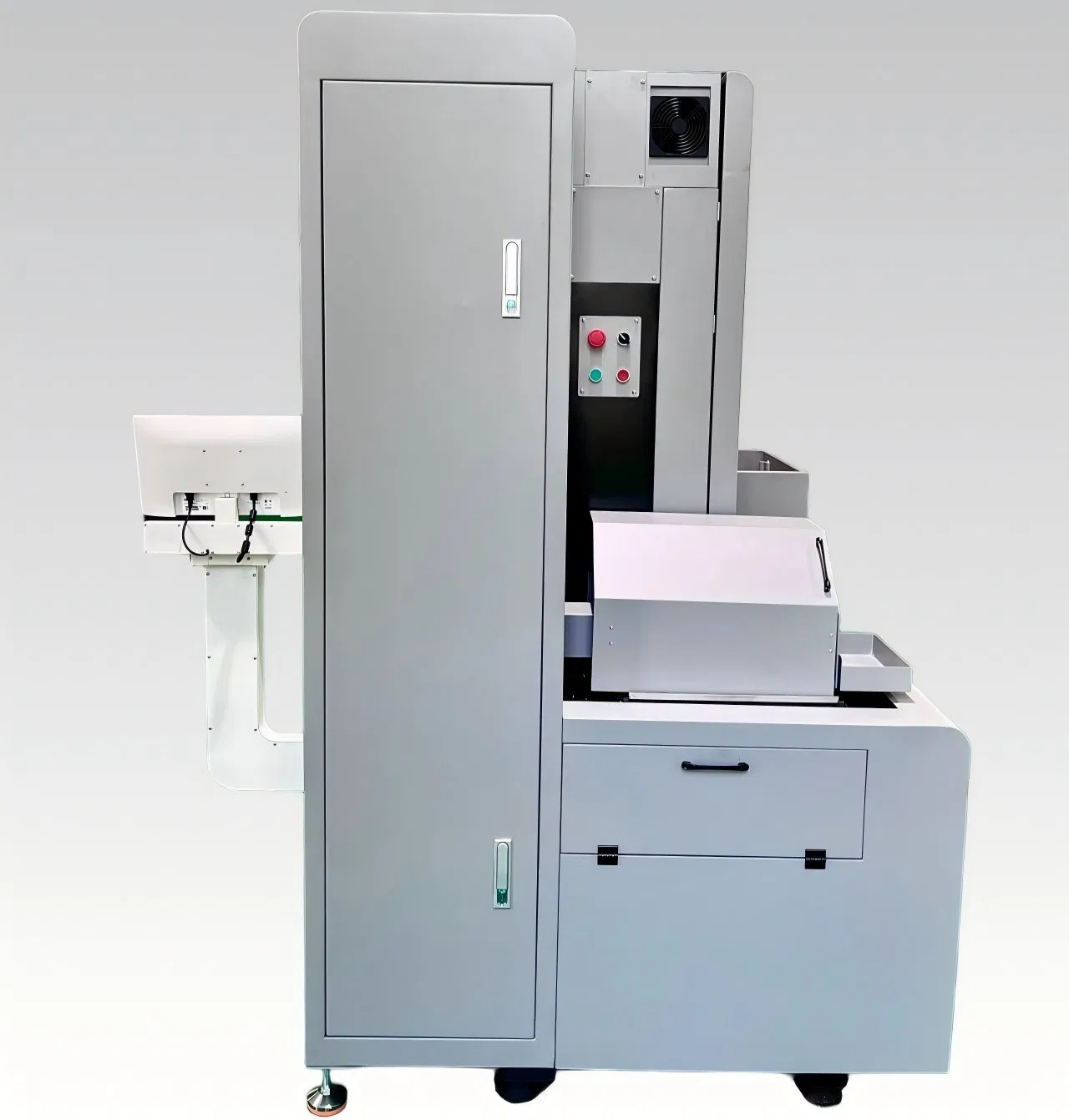

Advanced Automatic Wire Cut EDM Machine for Metal Processing
USD 18000,00 – 22000,00
/ piece
El precio varía según cantidad y especificaciones
| Cant. mín. | 1 piece |
| Categoría | General |
11
Años
98%
Tasa de respuesta
24h
Tiempo de respuesta
Más de este proveedor
Descripción del producto
No hay descripción disponible. Por favor envíe una consulta para más información.
Especificaciones técnicas
| Model NO. | BQ400 |
| Application | Metal |
| Process Usage | Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools |
| Movement Method | Linear Control |
| Control Method | Closed-Loop Control |
| Numerical Control | CNC/MNC |
| Processing Precision | 0.01~0.02(mm) |
| Performance Classification | High-End CNC Machine Tools |
| Certification | GS, CE, RoHS, ISO 9001 |
| Condition | Used |
| Keywords | Medium-Speed Wire Cut EDM |
| Worktable Size(mm) | 735×460mm |
| X/Y Travel (mm) | 400×320mm |
| Max Workpiece Size (mm) | 800×500mm |
| Max Cutting Thickness (mm) | 300mm |
| Max Load Weight (Kg) | 400kg |
| X/Y Min.Directive Unit (mm) | 0.001mm |
| U/V Travel (mm) | 80×80 |
| "Max Cutting Taper (with Top/Bottom Wate | ±15°/150 mm |
| U/V Min.Directive Unit(mm) | 0.001mm |
| Z Transmission | Numerical Control |
| Max Travel of Wire Drum(mm) | 200 |
| Transport Package | Standard Packaging or Customized |
| Specification | Standard Specifications or Customized |
| Trademark | ZHEJIANGBAQI |
| Origin | Zhejiang, China |
