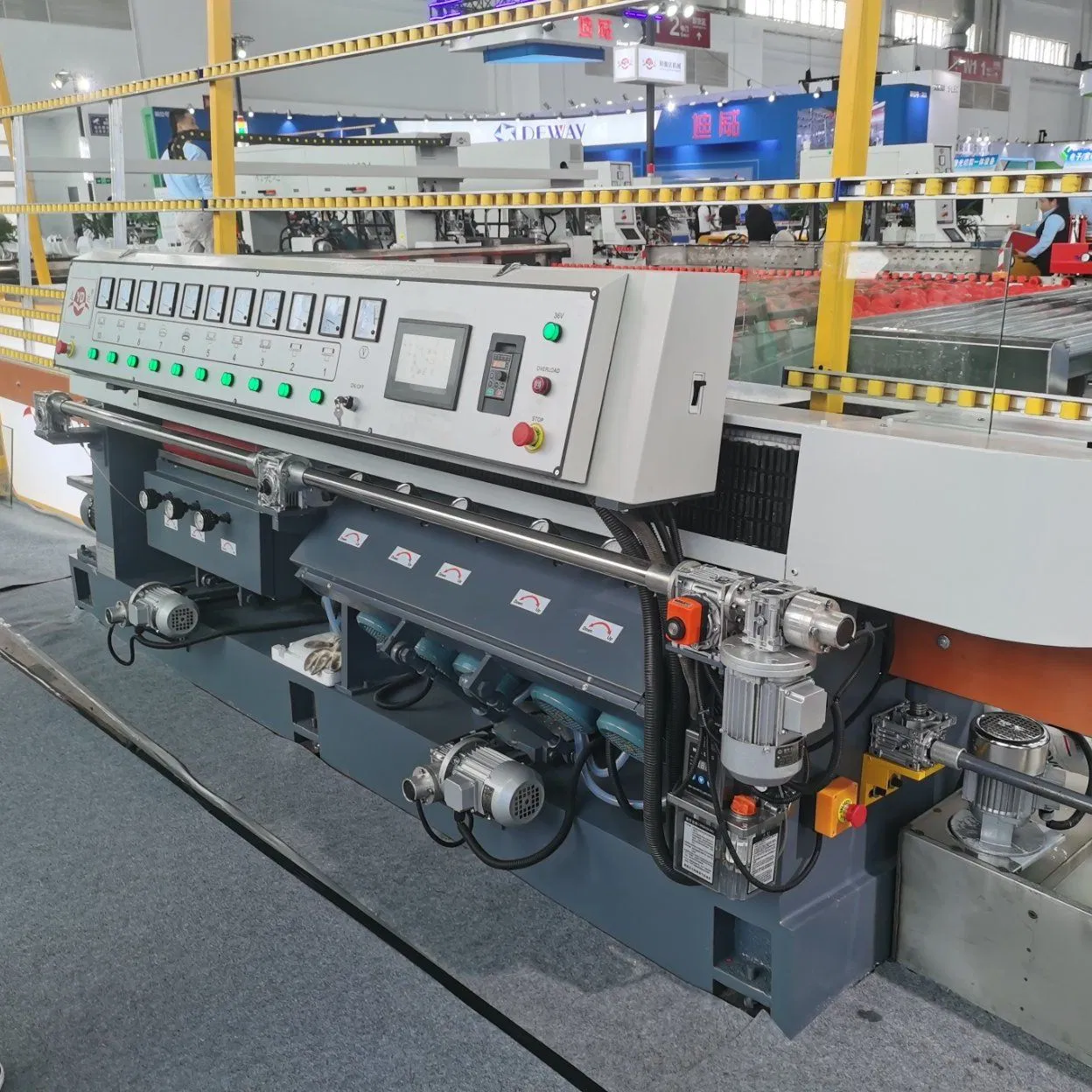

Vertical Glass Rectilinear Edge Grinding Machine with Multi Angle Function
Thumbnail 1 Thumbnail 2 Thumbnail 3 Thumbnail 4 Thumbnail 5 Thumbnail 6
Manufacturer & Trading Company

Vertical Glass Rectilinear Edge Grinding Machine with Multi Angle Function

USD 12200,00 – 12500,00 / piece
El precio varía según cantidad y especificaciones
Cant. mín. 1 piece
Categoría General
Realizar pedido
Liaoda (LAD) Glass Machinery Co., Ltd.

China

Manufacturer & Trading Company
21
Años
98%
Tasa de respuesta
24h
Tiempo de respuesta
Chatear ahora
Más de este proveedor
Multi Angle Glass Edge Grinding and Polishing Machine for Fe and Bevel
Multi Angle Glass Edge Grinding and Polishing Machine for Fe and Bevel
USD 11800,00
'octopus' Shape Glass Edging Machine by Manual for PE, Fa, Og, Bevel
'octopus' Shape Glass Edging Machine by Manual for PE, Fa, Og, Bevel
USD 4200,00
1200mm 1600mm Flat Glass Washing Machine with Blower Drying System
1200mm 1600mm Flat Glass Washing Machine with Blower Drying System
USD 9000,00
Automatic Glass Double Hole Drilling Machine with Continuous Options
Automatic Glass Double Hole Drilling Machine with Continuous Options
USD 15500,00
Jumbo Glass Automatic Double Edging Production Line for 6000 3300 Size Glass
Jumbo Glass Automatic Double Edging Production Line for 6000 3300 Size Glass
USD 58000,00
Large Glass 3300mm Washing and Drying Machine with High Pressure Blower
Large Glass 3300mm Washing and Drying Machine with High Pressure Blower
USD 25500,00

Descripción del producto

No hay descripción disponible. Por favor envíe una consulta para más información.

Vertical Glass Rectilinear Edge Grinding Machine with Multi Angle Function
Vertical Glass Rectilinear Edge Grinding Machine with Multi Angle Function

Especificaciones técnicas

Model NO.YD-EM-10-45(5+3)
CertificationCE
Processing Speed0.8~6 M/Min
Processing Thickness3-19 mm
Voltage380V
Warranty1 Year
FunctionGrind and Polish Flat Edge/Arris/Chamfer
ApplicationWindow and Door, Architecture, Furniture, etc.
Min. Glass Size80X80mm
Glass Speed0.8-6m/Min
Weight3600kg
Power20kw
Control ModeManual, Single Chip, PLC
PerformanceFlat Edge, Arris, 45-90 Degree Chamfer
Angle Control Motor5 and 3
Motor BrandABB, Cdqc, Chinese Reliable Brands
TypeGlass Edging Machine
StructureVertical
Control SystemPLC
Grinding Head Number10
After-Sales ServiceLifetime Online Technical Support
Transport PackageWrapped in Plastic Bubble Sheet
Specification7.1x1.0x2.6m
TrademarkYD
OriginGuangdong, China
HS Code8464201000
